Hexagonal 40mm
Commercial Quality
|
Hexagonal 50mm
Extra Heavy Duty
|
Main Profile Shape |
 |
 |
|
|
Red: |
MC400-33-3-RED |
|
Blue: |
MC400-33-3-BLU |
|
Green: |
MC400-33-3-GRN |
|
White: |
MC400-33-3-WHT |
|
Black: |
MC400-33-3-BLK |
|
|
Red: |
MC500-33-3-RED |
|
Blue: |
MC500-33-3-BLU |
|
Green: |
MC500-33-3-GRN |
|
White: |
MC500-33-3-WHT |
|
Black: |
MC500-33-3-BLK |
|
Height:
|
3.3m |
3.3m |
Clearance: |
2.15m |
2.15m |
Weight: |
19kg |
31kg |
Box Dimensions: |
158 X 25 X 25cm |
158 X 32 X 32cm |
Main Profile: |
40cm X 40cm X 1.2mm |
50cm X 50cm X 1.8mm |
Truss Bars: |
25 X 13mm |
35 X 17mm |
Material: |
Aluminlum |
Aluminlum |
Framework: |
6063/T5 |
6063/T5 |

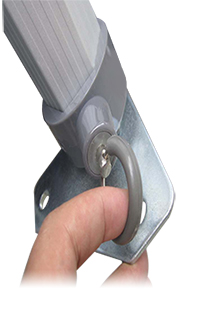

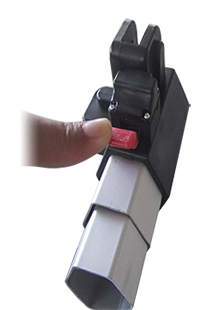

Pull Ring System: |
Yes |
Yes |
Roof Tension: |
Roof Tension Spring |
Roof Tension Spring |
Fabric: |
500D oxford
with PVC coating |
500D oxford
with PVC coating |
Nuts & Bolts: |
Zinc Plated |
Stainless Steel |

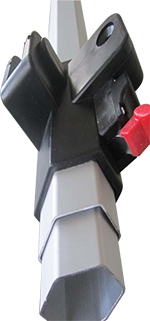

Connectors: |
Commercial -
Plastic |
Heavy Duty
Extruded Aluminium |
Feet: |
Galvanised Steel |
Galvanised Steel |
Main Profile Shape: |
 |
|
|
|
|
|
|
|
|
|
|
|
|
Graphic Size (mm): |
Side Walls: |
3020mm X 2220mm
|
|
Front Walll: |
3020mm X 2220mm
|
|
Back Walll: |
3020mm X 2220mm |
|
Half Wall: |
3020mm X 1150mm |
|
Valance: |
3010mm X 380mm |
|
|
|
|
|
|
|
|
Frame Material: |
Anodised aluminium 6063/T5. |
|
|
|
|
|
|
Roof & Wall Material: |
500D oxford with PVC coating |
|
|
|
|
|
|

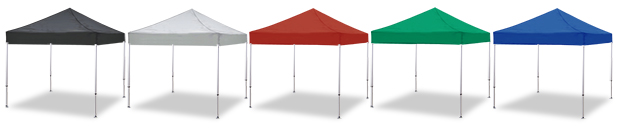

Fabric Colors Options: |
Red, Blue, Green, White, Black |
|
|
|
|
|
|
Setup time: |
10-15 minutes. |
|
|
|
|
|
|
Package Includes: |
1 X Marquee frame 3m X 3m
1 X Marquee Roof (Available in Red, Blue, Green, White, Black.)
1 X Back Wall (Available in Red, Blue, Green, White, Black.)
2 X Side Walls (Available in Red, Blue, Green, White, Black.)
1 X carry bag with wheels
4 x pegs & ropes
|
|
|
|
|
|
|
Replacement Roof: |
It is easy to replace the Roof panel for future marketing campaigns. Replacement Roof can be purchased and mailed seperately, and can easily be installed by the user. |
|
|
|
|
|
|
Request template: |
|
|
|
|
|
|
|
Turnaround: |
Normal 10-14 working days [See other options below]. |
|
|
|
|
|
|
|
|
|
|
Price: |
Marquee Frame
|
Price
|
M5 Deluxe Pro range.
Hexagonal 40mm Professional Quality

|
|
|
 |
$
|
1475
|
|
|
|
|
|
|
|
M9 Premium Commercial Heavy Duty Range. Hexagonal 50mm
Extra Heavy Duty

|
|
|
 |
$
|
1725
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Options: |
|
|
|
|
|
|
|
|
Click Here for More Information regarding branding the marquuee with full color Printing |
|
|
|
|
|
|
|
Full Wall Size: 3 X 3m |
|
|
|
|
|
|
|
Half Wall Size: 1.2 X 3m |
|
|
|
|
|
|
|
Provides extra shade in the front of the marquee |
|
|
|
|
|
|
|
Enables you to mount our flag pole on the tent pole |
|
|
|
|
|
|
|
Add when there is expose to strong wind conditions |
|
|
|
|
|
|
|
10.5kg Plate, add when there is expose to strong wind conditions |
|
|
|
|
|
|
|
Red, Blue, Green, White, Black |
|
